风扇和滤光器 / 循环风机

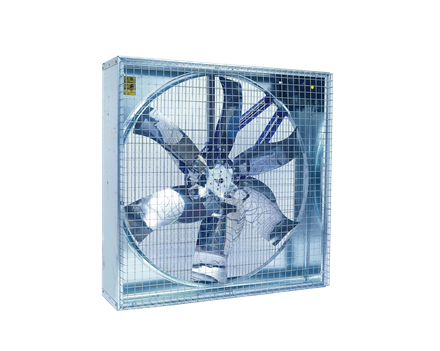

Euroemme® EMS50 Air recirculator
EMS series
- Each motor is individually tested for 100% quality control
- Each motor is individually tested for 100% quality control
- Central hub and v-belt pulley are made from die-cast aluminium
- Welded wire guards divided into two parts ensure easy maintenance
- Propeller is statically and dynamically balanced
- Special threaded bushes on fan’s side panels permit the fan to be easily hung
- Every fan is individually checked for quality
产品介绍
EMS50 is the ideal air recirculation fan whenever extra high air movement capacity is required. The unique propeller design is self-cleaning and allows the highest efficiency to be reached. The square fan housing and air conveyor (venturi) are made of a strong galvanised sheet-steel. The 6-blade propeller is statically and dynamic balanced for low noise and low vibration. The propeller is available in stainless steel, galvanised steel and pre-coated and galvanised steel. To improve aerodynamic efficiency, the fan has been developed in Munters R&D lab. The test chamber has been built according to ANSI/AMCA 210-85 Figure 15 specifications. Construction details and airtightness have been verified by personnel of the BESS Lab at the Agricultural Engineering Department, University of Illinois – USA.
- 技术参数
- 下载
| 1.0 HP | |
|---|---|
| Propeller diameter | 1,270 mm |
| Motor | 1.0 hp |
| Airflow 0Pa | 35,650 m3/h |
| Specific performance at 0Pa | 30.7 m3/wh |
| 1.5 HP | |
| Propeller diameter | 1,270 mm |
| Motor | 1.5 hp |
| Airflow 0Pa | 41,200 m3/h |
| Specific performance at 0Pa | 25.0 m3/wh |
